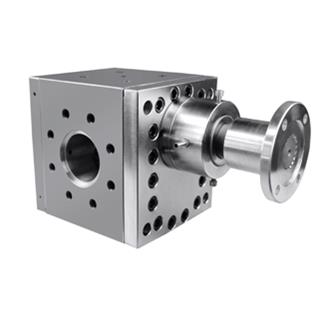

thermoplastic extrusion pump
The thermoplastic extrusion pump is used for transportation, pressurization or the metering of the high temperature and high viscosity plastic melt. So it is also be called thermoplastic extrusion pump or melt pump extrusion for plastics.
thermoplastic extrusion pump Applications:
1.thermoplastic extrusion pump are widely used in plastics extrusion. Such as: granulation, film, pipe, plate, sheet, synthetic fibers, fiber optics, medical plastic catheters and other industries.
2.The main function of the thermoplastic extrusion pump as a component of the extrusion equipment is to keep the flow and pressure of the plastic melt flow to the die at a continuous extrusion working.
3.thermoplastic extrusion pump play an important role in extrusion system for all thermoplastics.
thermoplastic extrusion pump Details:
|
Technical Parameters |
Operating parameters |
Material For Melt Pump Body: high temperature tool steel, chrome-nickel steel
Gear: high temperature tool steel, nitrided steel
Tooth profile: straight tooth, helical tooth, herringbone tooth
Sliding Bearing: high temperature tool steel
Shaft Sealing: Spiral sealing, packing sealing spriral and packing seal or other
combined sealing
Heating System: Electrical Rod Heating
Theory: Positive Displacement Gear Pump
Structure: Gear Pump
Usage: Plastic, Rubber Pump and Fiber
Power: Electric or Oil
Fuel: No Need
|
Pressure: High Pressure
Volume Range: 0.5CC - 3200CC
Viscosity: ≤40000 Pas
Working Temperature: ≤400°C (750°F)
Cleaning Temperature: ≤450°C (850°F)
Outlet Pressure: ≤40MPa(6000psi)
Differential Pressure: ≤25Mpa
|
|
Type
|
CC/Rev
|
Capacity (L/H)
|
Heating power (kw)
|
Driven system (km)
|
|
ZB-0.2
|
0.2
|
0.1-0.6
|
0.5
|
0.37
|
|
ZB-1
|
1
|
0.5-3
|
1
|
0.5
|
|
ZB-2
|
2
|
1-6
|
1
|
0.75
|
|
ZB-5
|
5
|
2.5-15
|
1
|
1.1
|
|
ZB-10
|
10
|
5-30
|
1
|
1.5
|
|
ZB-20
|
20
|
10-60
|
2
|
2.2
|
|
ZB-31.5
|
31.5
|
15-90
|
2
|
3
|
|
ZB-50
|
50
|
25-150
|
3
|
4
|
|
ZB-100
|
100
|
50-300
|
4
|
5.5
|
|
ZB-150
|
150
|
75-450
|
5
|
7.5
|
|
ZB-200
|
200
|
100-600
|
6
|
11
|
|
ZB-250
|
250
|
125-750
|
8
|
15
|
|
ZB-315
|
315
|
150-900
|
8
|
18.5
|
|
ZB-500
|
500
|
250-1500
|
12
|
22
|
|
ZB-800
|
800
|
400-2400
|
15
|
30
|
|
ZB-1200
|
1200
|
600-3600
|
20
|
37
|
|
ZB-2500
|
2500
|
1300-7500
|
24
|
45
|
|
ZB-3200
|
3200
|
1600-9600
|
24
|
55
|
|
ZB-6200
|
6200
|
3000-18000
|
30
|
75
|
Batte Machinery Zhengzhou Co.,Ltd. is one of the melt pumps extrusion manufacturer for melt pump in China. Being a professional supplier for gear pumps extrusion, we have been accumulating adequate experience on the application-specific technique. In addition to providing services and spare parts for our own pumps, we also provide comprehensive service packages for melt pump produced by other manufacturers.
